Side Light LED Backlit Embossing FPC Membrane Switch With Polydome

Product Categories
WenYI Electronics Electronics Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Side Light LED Backlit Embossing FPC Membrane Switch With Polydome

Brand Name : Wenyi Electronics

Model Number : GPI-BLED-002

Certification : RoHs,SGS,ISO9001:2008

Place of Origin : Made In China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 150,000pcs/ months

Delivery Time : 8-20 working days

Packaging Details : each in Polybag,then in carton box as standard packing,

LED : SMT Side Light LED

selling point : Backlit led

Circuit : FPC or PET

Life span : 1 million operation life time

Keys : Metal dome or polydome embossing Keys

Print : Silk Screen or Digital Print

LED brand : Ever light or any brand

Contact Now

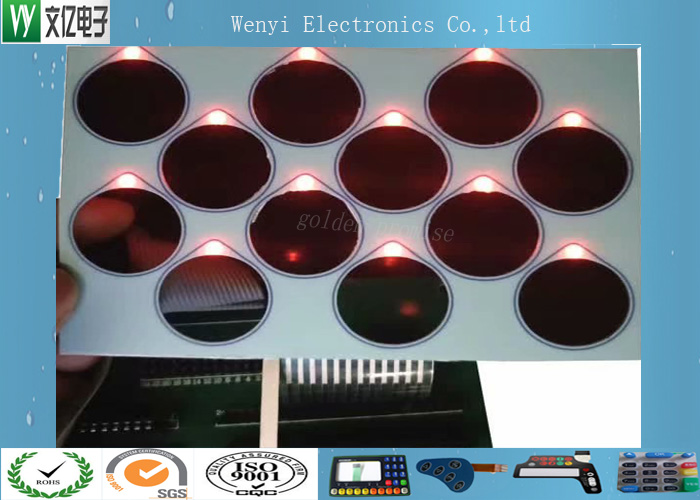

Side Light LED Backlit Embossing keys Membrane Switch with Polydome

Item description:　

Side Light LED Backlit Embossing keys Membrane Switch with Polydome

Backlit type: LGF with side light or common LED back light

Led Type: side light LED 0603 or any brand

LED welding:　　SMT Led

Keys: Embossing or Flat, Polydome or metal dome

LED Embossing: Embossing window or no embossing

Circuit : FPC high precision and high stablility.

Quality: more stable than PET circuit with LED

Membrane switches are used in a variety of applications including medical, aerospace, defense, industrial and transportation. They are commonly used in keypads, aircraft control panels, touch screen phones and kidney dialysis machines – just to name a few

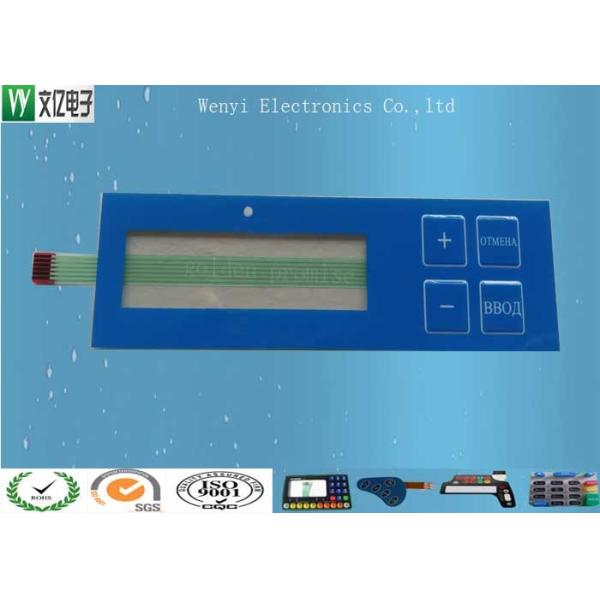

Side Light LED Backlit Embossing FPC Membrane Switch With Polydome

　

Specification:

　　　　　　　　　　　　

Wenyi Electronics Co.,Ltd Technical Specification Of Membrane Switch
Membrane switch Range carbon paste circuit, silver paste circuit,carbon & silver paste combine circuit,capacity touch sensor circuit and membrane switch, various backlit membrane switch,waterproof, medical membrane switch, digital print membrane siwtch,Zebra cable,SMT LED membrane switch, EL backlit, aluminum plate, PC & Acrylic overlay,touch force membrane circuit,FPC membrane switch, Soft and Rigid combine membrane switch, metal dome , ploy dome,embossing,various membrane switch in the market. Silicone Keypads.
Engineering capability customer design(OEM), own design(ODM),
Factory capacity 500,000pcs / month
wire lead resistance: ＜1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0～30V DC Operation Temperature: -40℃～70℃
Rated Voltage: ＜50V, DC Operation Humidity: at40℃,＜98%RH
Insulation resistance: ＜100MΩ,250V DC Dome springback time: ＜5 msec
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree
Print type silkscreen Digital print UV print
Dome type metal dome ploydome embossing keys
Embossing type various kinds of embossing available,embossing height max 1.2mm
Quality control level Defect Rate less than 4 pcs out of 1000pcs
Quality Guarantee Provide 1 year or 0.5~1 milion operation times, as per standard.
Sample lead time 8 to 12 working days as standard
Mass Production lead time 12 to 20 working days, as per order volume. Urgent order available
MOQ 10 pcs / lot, might be different as per specification
update date: 2020/2/10
