Silicone Overlay FPC 1mm Pitch Membrane Switch

Product Categories
WenYI Electronics Electronics Co.,Ltd
Contact Now

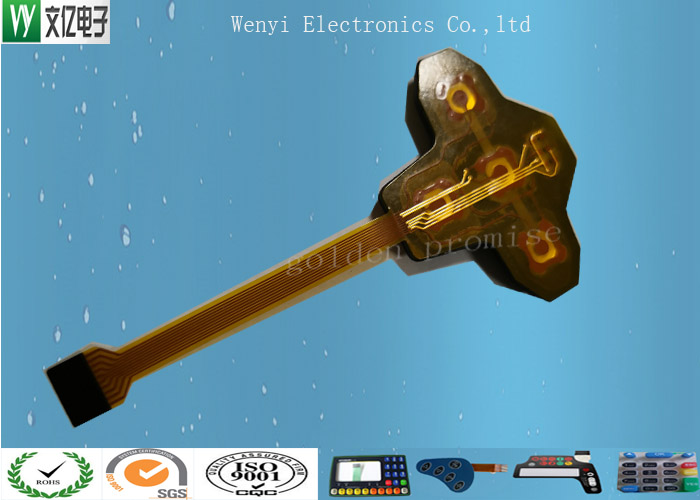

Silicone Overlay FPC 1mm Pitch Membrane Switch

  • 1
  • 2
  • 3

Brand Name : Wenyi Electronics

Model Number : GPI-FMS-0026

Certification : RoHs, SGS, ISO9001

Place of Origin : Made in China

MOQ : 500 pcs / lot

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal

Supply Ability : 5,000,000 pcs / Months

Delivery Time : 10-14 working days

Packaging Details : ploybag for each, then in carton box, or as per request

Circuit type : FPC Cirucit

Overlay : Silicone Overlay Keypad

Backadhesive : 3M 467 MP

Connector : Gold Finger

Silione Hardness : 45 Degree

Waterproof : IP54，IP67，IP65

Pitch : 1 mm

Metal Dome : Nickle Plated 450g

Life Time : Over 1 Millions operation times

Contact Now

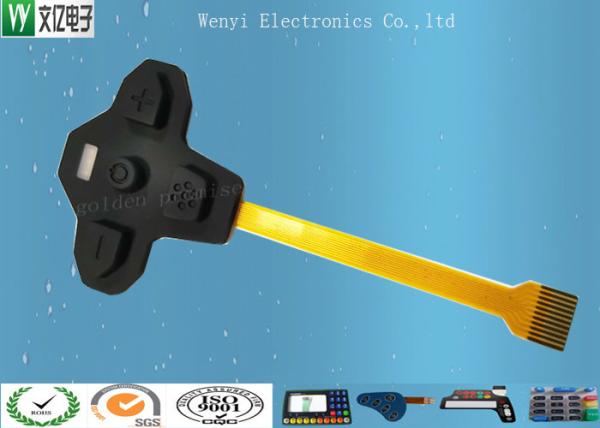

Silicone Overlay FPC 1 mm Pitch Female Connector Membrane Switch With Laser Engraved LED Window

Item description:

  • Overlay: Silicone Overlay with 4 Keys
  • Circuit type: Flexible FPC Combine
  • Button type: metal dome keys
  • Female Connector Cable
  • Tactile: perfect tactile feeling
  • Touch force: 150g -450g or as per request
  • Waterproof: IP67 IP54, IP65 Standard
  • Backadhesive: 3M Series.
  • Gold Finger Connector or ZIF Connector, Female connector
  • Defect rate: less than 0.3%
  • Guarantee: 1 year quality Guarantee for all customers or 1 million opeation life time

Product Characters:

  1. FPC flex circuit with high precision
  2. Silicone Keys with Laser Engrave LED window
  3. Custom made OEM/ODM
  4. Silicone Overlay
  5. Color keys screen print are available
  6. Withstand millions of cycles
  7. Perfect exterior
  8. Good touch feeling, tactile type
  9. Security protection

Our Advantage:

  1. We Focus in membrane switch and related items.
  2. Strong R&D capability
  3. Stable in quality
  4. Competitive price
  5. Short Lead time for samples and Mass production
  6. Whole solution design available
  7. Advance Automatic Machines

Applications:

  1. * home appliances and device
  2. * Security Protection systems with Cipher Code
  3. * Various industry control keypad panel
  4. * consumer electronics and 3C item
  5. * Thrapy medical system and device
  6. Various automtic machine control keypad

Technical Specification:

Silicone Raw material: Dow Corning or China Local brand
Silicone Hardness: 35 ~55 Degree As per request
Print on Key type: PU coat, silkscreen, touch feeling oil laser engrave or others, backlight design
Key Color: Any pantone Color Plant colors on different keys
Sample Lead Time: 7 to 10 working days Tooling time might be 25 working days
Mass Production Lead Time: 7 to 14 working days Lead time depends on order status or Qty / lot
Life Time: 1~ 500 milion cycles Anti-UV type , waterproof design can be ok

Silicone Overlay FPC 1mm Pitch Membrane Switch


Product Tags:

1mm Pitch Membrane Switch



Silicone Overlay Membrane Switch



FPC membrane switch keypad


Silicone Overlay FPC 1mm Pitch Membrane Switch Manufactures

Silicone Overlay FPC 1mm Pitch Membrane Switch Images
